Fig. 11
Download original image

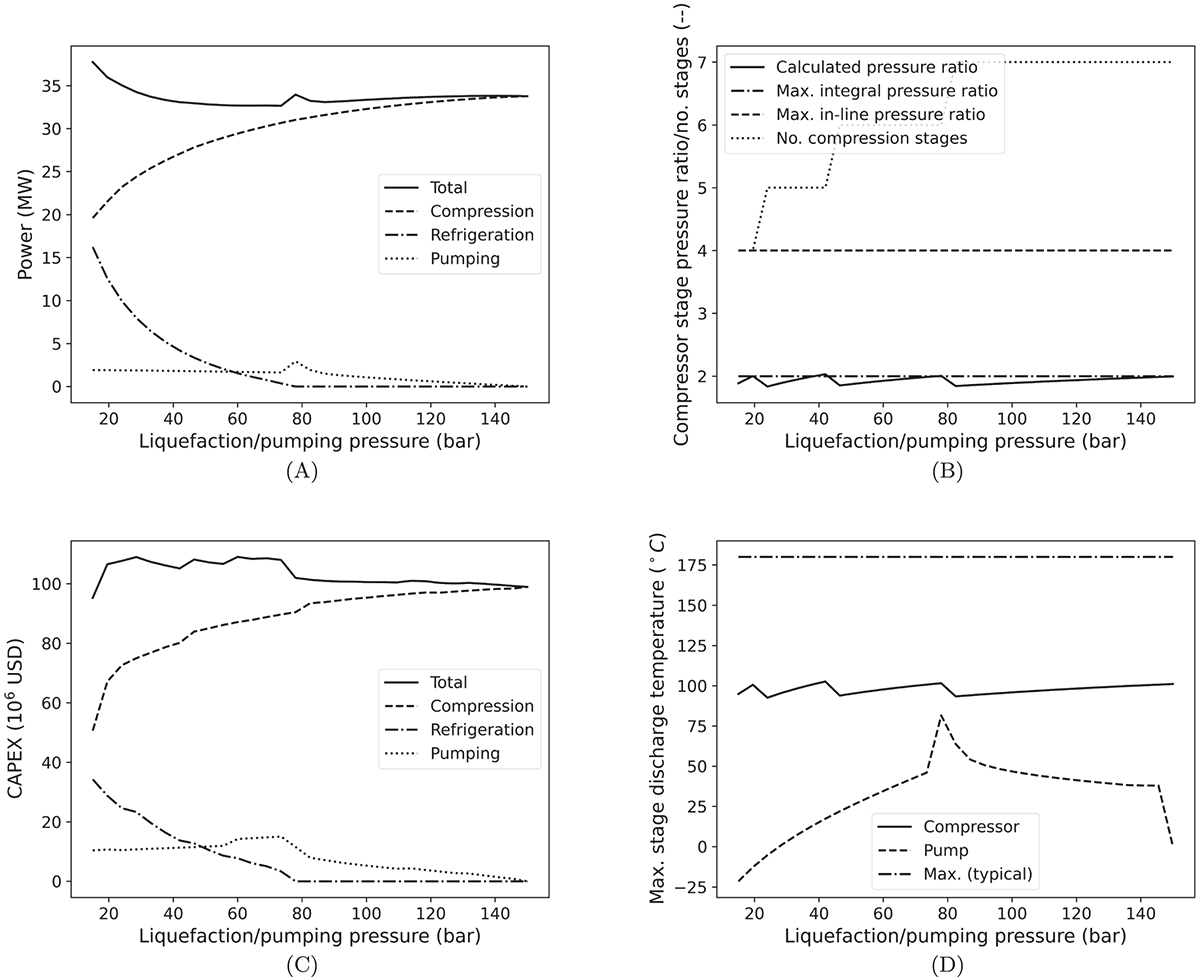

Initial case (case 1). (A) total power requirement as well as subsystem power, (B) Compression pressure ratio and number of compression stages, (C) Total CAPEX as well as subsystem CAPEX, (D) discharge temperature of compressors (max) and liquid CO2 pump, all as a function of pressure where compression ends and pumping is initiated.
