Fig. 10
Download original image

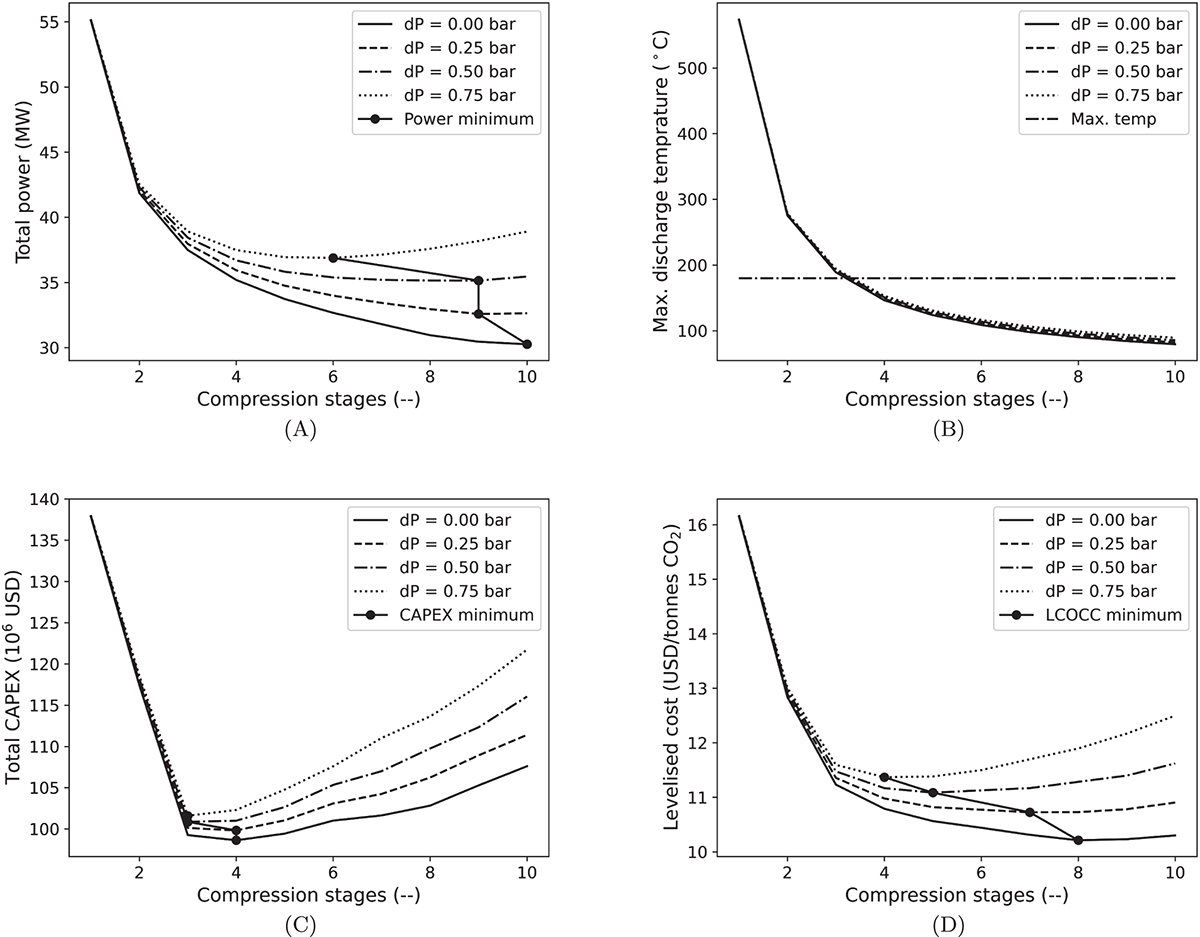

(A) Total power, (B) maximum compressor discharge temperature, (C) total CAPEX, and (D) levelised cost of compression LCOCC as function of number of compression stages and four different levels of inter-stage pressure drop. Compression stage number for minimum power, CAPEX and LCOCC indicated for the different inter-stage pressure drops applied.
