Figure 1
Download original image

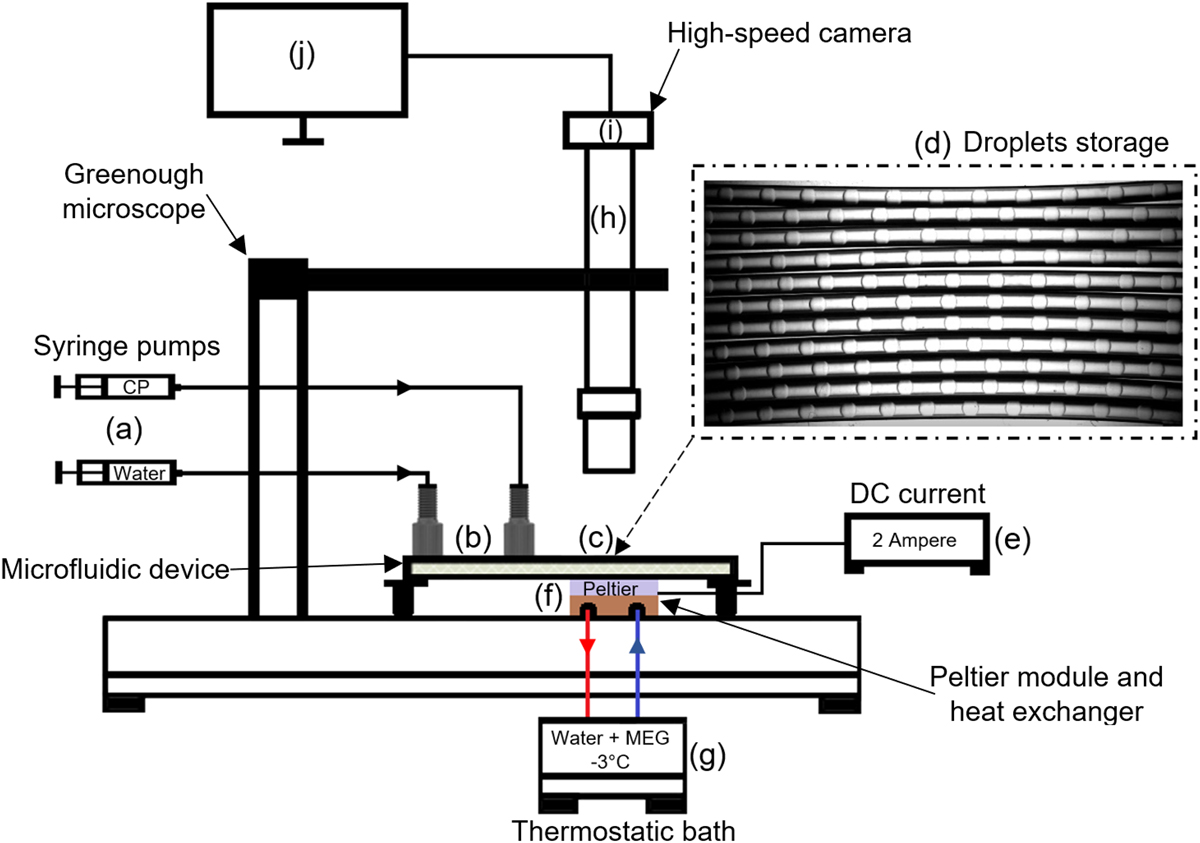

Experimental setup: (a) syringe pumps, (b) microfluidic design-droplets generation, (c) microfluidic design-droplets storage, (d) Overview of the serpentine tubes containing the immobile water/CP, (e) power supply, (f) Peltier module + heat exchanger, (g) thermostatic bath, (h) Greenough stereo microscope, (i) high-speed camera and (j) data and image acquisition system.
