Fig. 20
Download original image

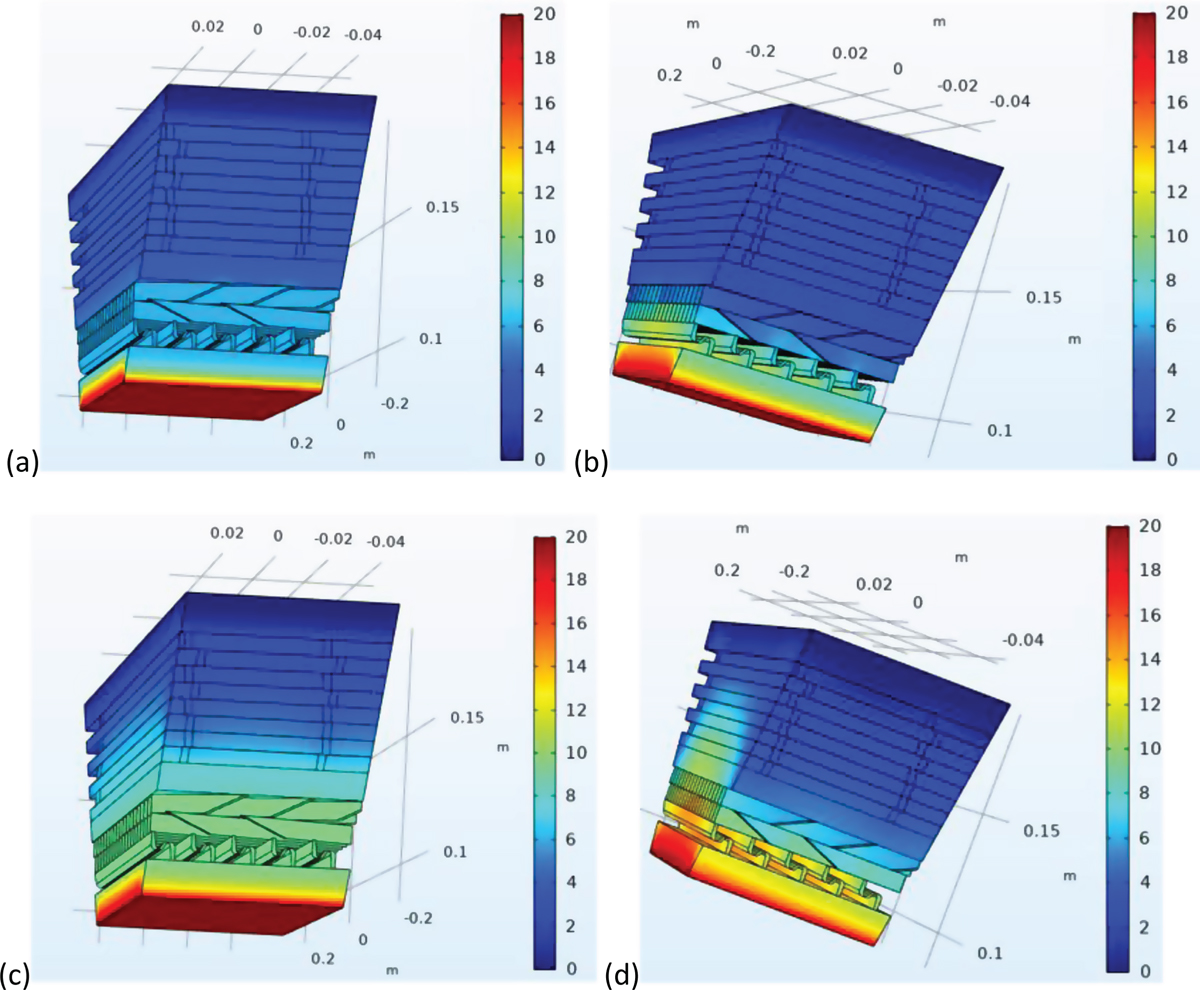

Illustration of the calculation results obtained with 3DIFF software for flexible F2 with fCO2 equal to 20 bar in the bore. (a) and (b) correspond to the dry insulation annulus, and respectively dry and flooded steel annulus. (c) and (d) correspond to the flooded insulation annulus, and respectively dry and flooded steel annulus.
