Fig. 4
Download original image

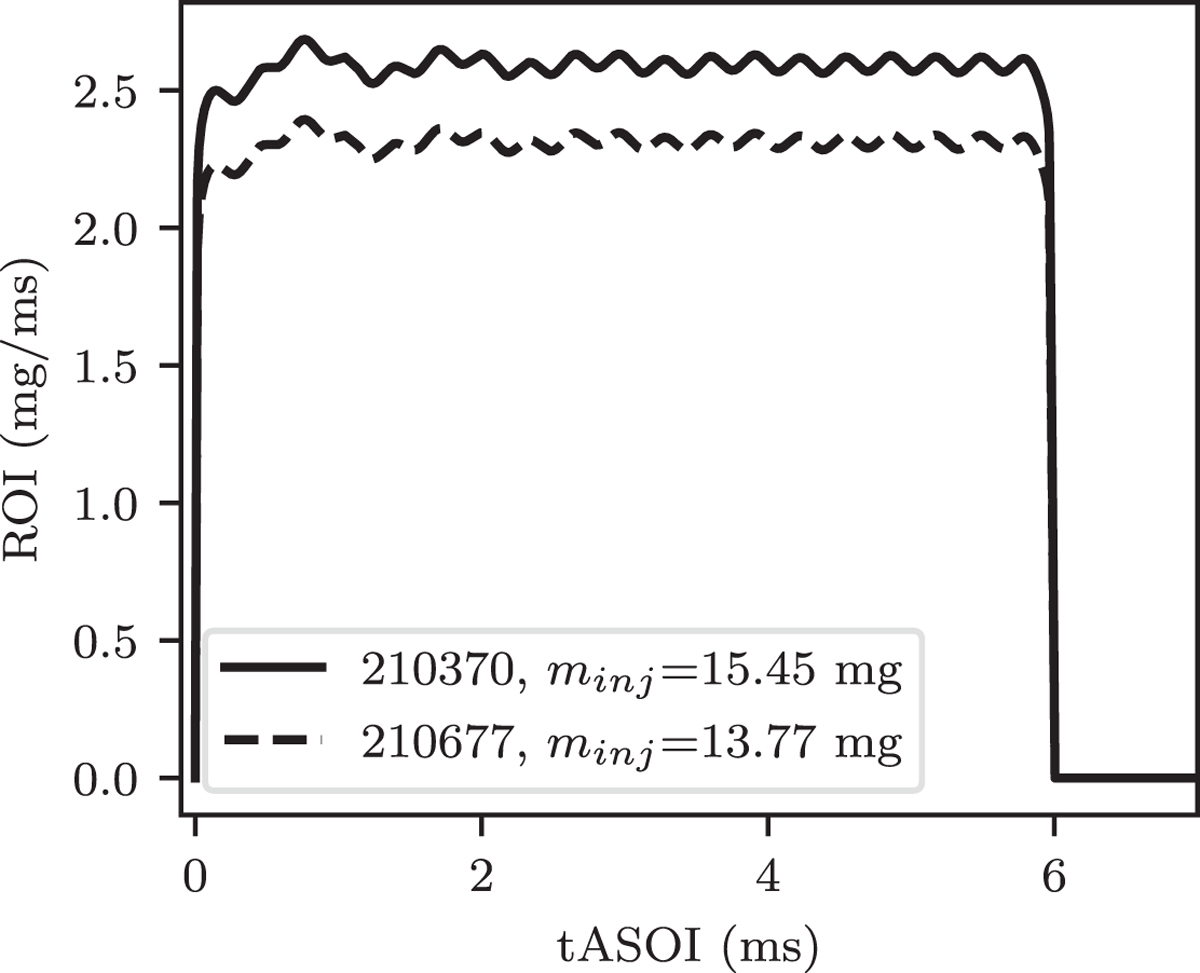

Rate Of Injection (ROI) profiles for the ECN Spray A injectors. ROI shapes are obtained from the virtual injection rate generator [51] with the overall injected mass evaluated as the integral of the given ROI profiles. Note, that the ROI for the injector 201677 is scaled to ensure the experimentally given value for the injected mass of 13.77 mg [52].
