Fig. 9
Download original image

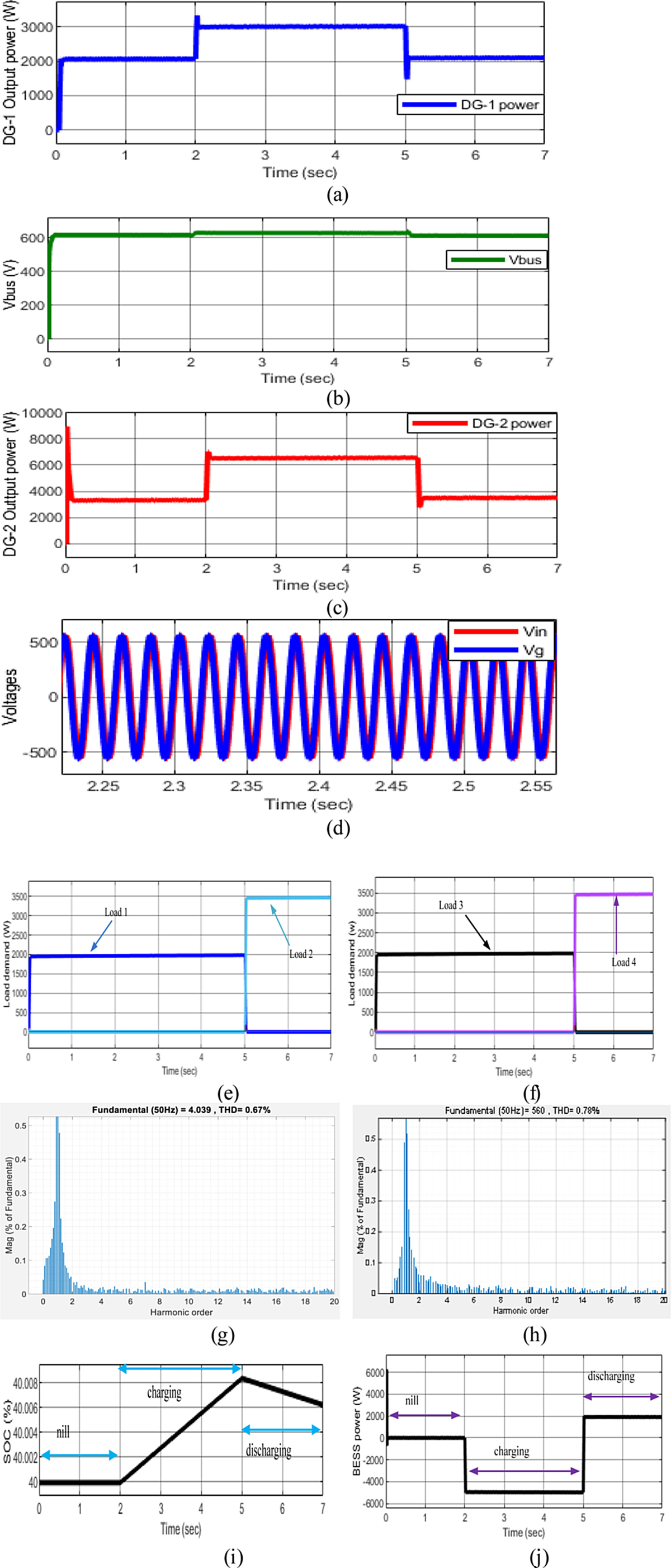

Power output waveforms: (a) DG-1 output power, (b) DC-link voltage, (c) DG-2 output power, (d) grid voltage (Vg) and inverter line voltage (Vin), (e) power demand near DG-1, (f) demand power near DG-2, (g) the inverter current THD (after the filter), (h) inverter line voltage THD estimations, (i) BESS SOC and (j) Battery power (W) when charging/discharging.
