Fig. 5
Download original image

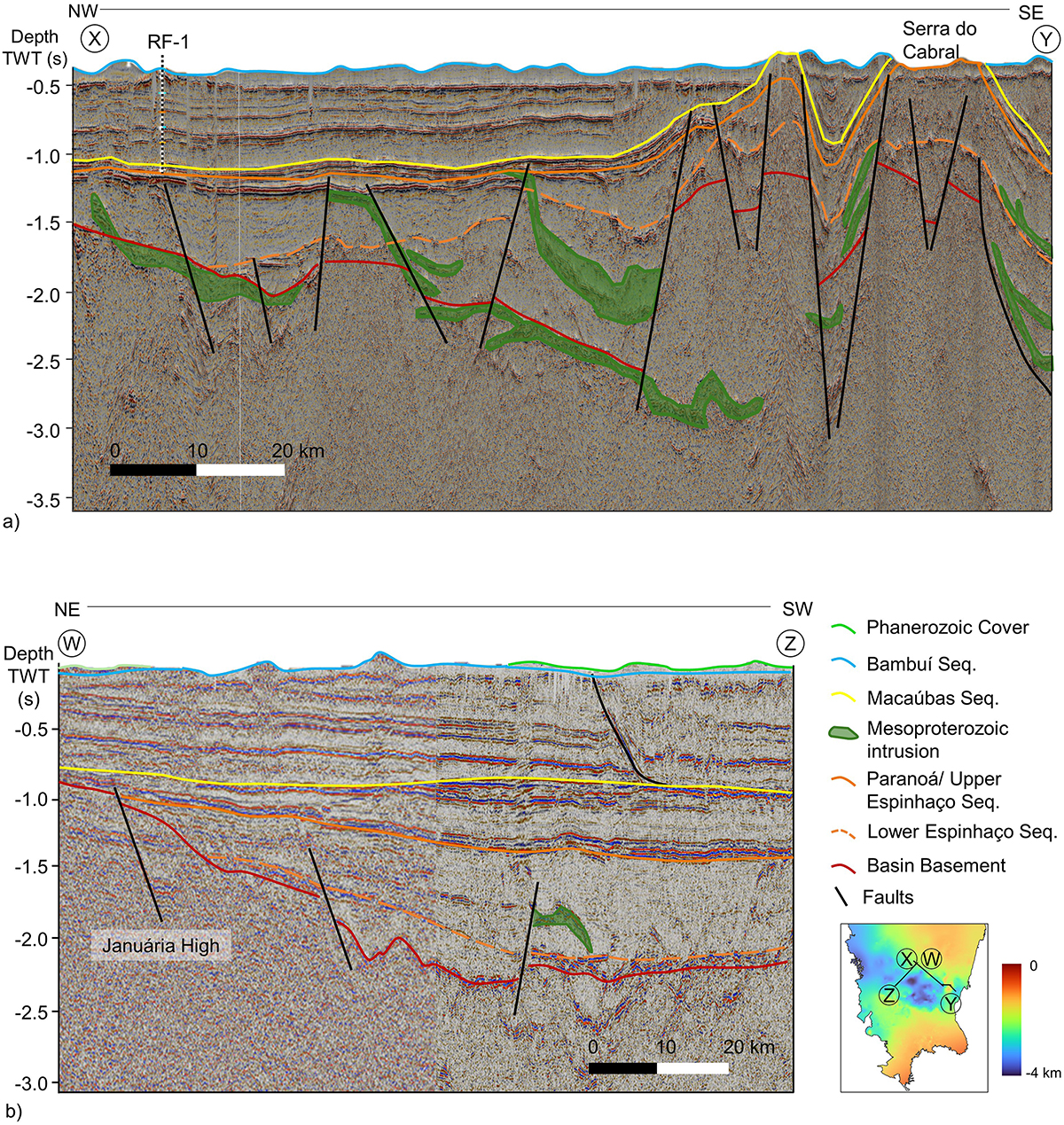

Seismic profiles of the SFB. (a) Composite seismic line using R0240-STM-0240.0300 and 0319_PETRA_BSF-VIBRO2D_2010_STM_0319-0461, oriented NW-SE. (b) Composite seismic line using R0240-STM-0240.0063 and R0240-STM-0240.0291, NE-SW oriented, showing the Januária High projection.
