Fig 15
Download original image

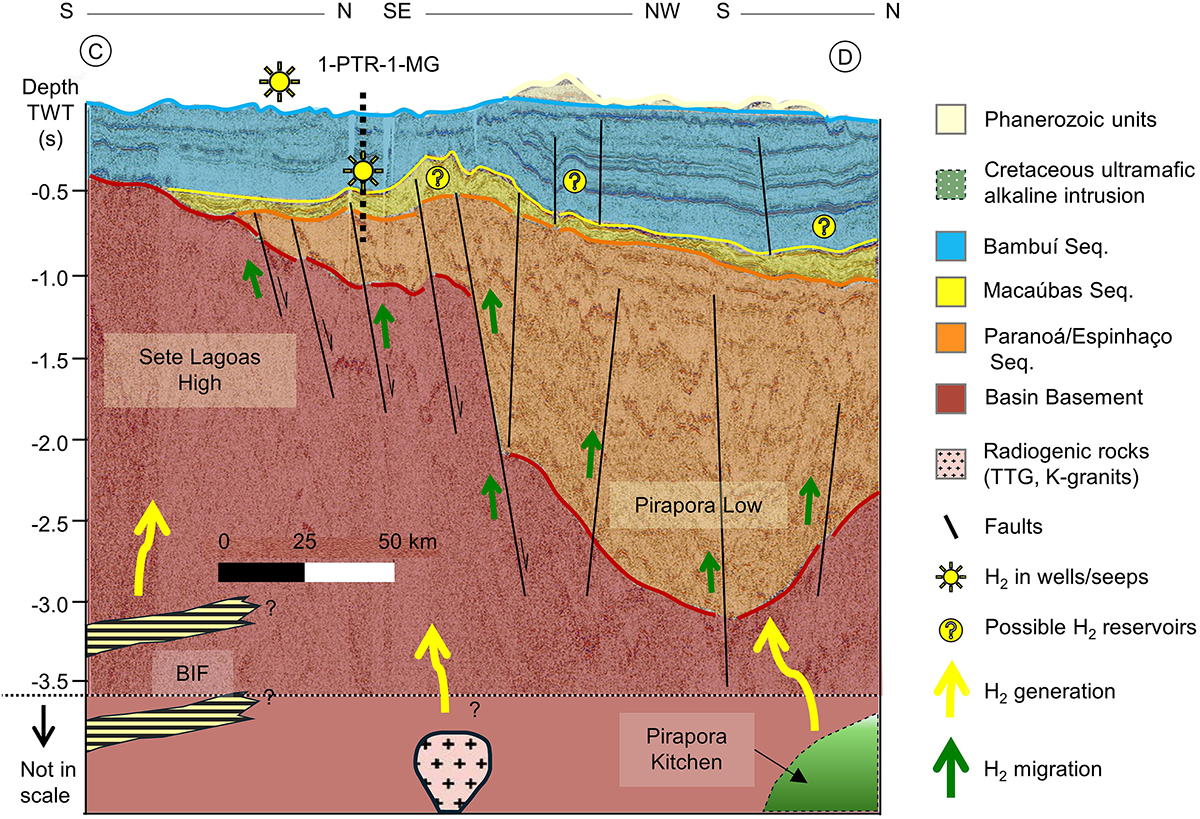

Sketch of the potential H2 kitchen for the southern part of the SFB: southward the BIF overthrusted in the belts, the intrusions, and the Pirapora magnetic anomaly. The vertical scale is in time for the seismic lines and schematic for the deepest part.
