Figure 8

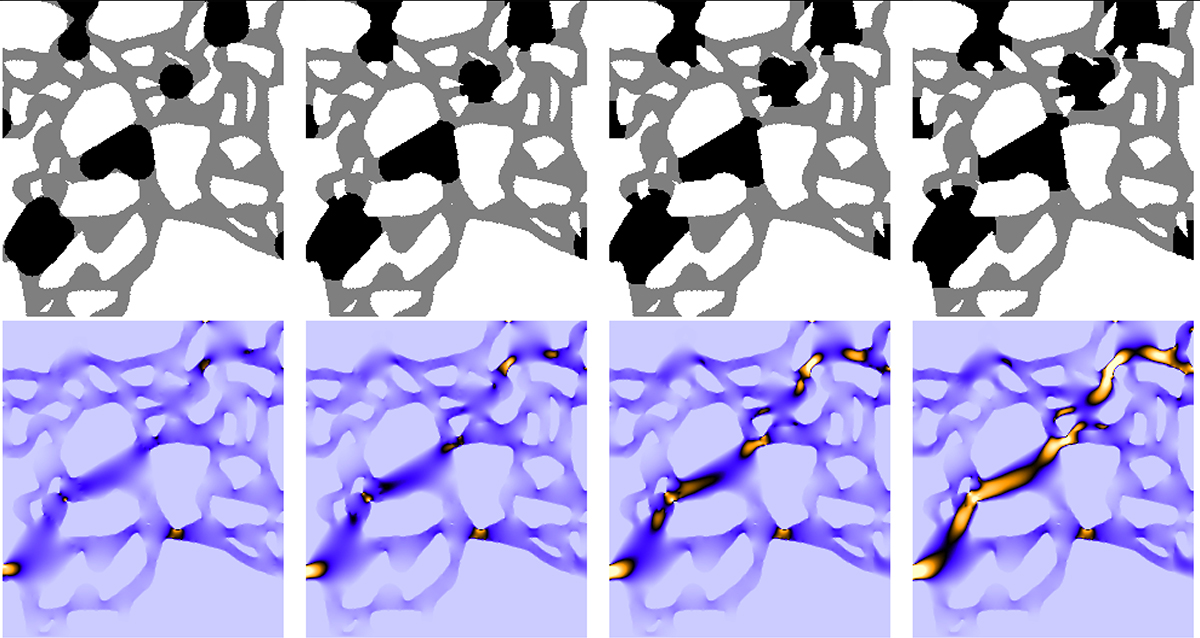

[Left]: Initial image of selected sub-volume (SV₇ in Fig. 9), [Right]: Altered images, geodesic dilation of macropores with 3 pixels, 6 pixels, 9 pixels. Macropores: black, solid grains: white and microporous matrix: grey. [Bottom Left]: Flow field in the initial image of selected sub-volume SV₇, [Bottom Right]: Flow fields in the alterated images.
