HF/HR VSP acquisition, processing, and interpretation in the deviated section of the high-angle geothermal borehole of Grigny GGR5, targeting intra-Dogger thin, porous beds | Science and Technology for Energy Transition (STET)

Open Access

Figure 23

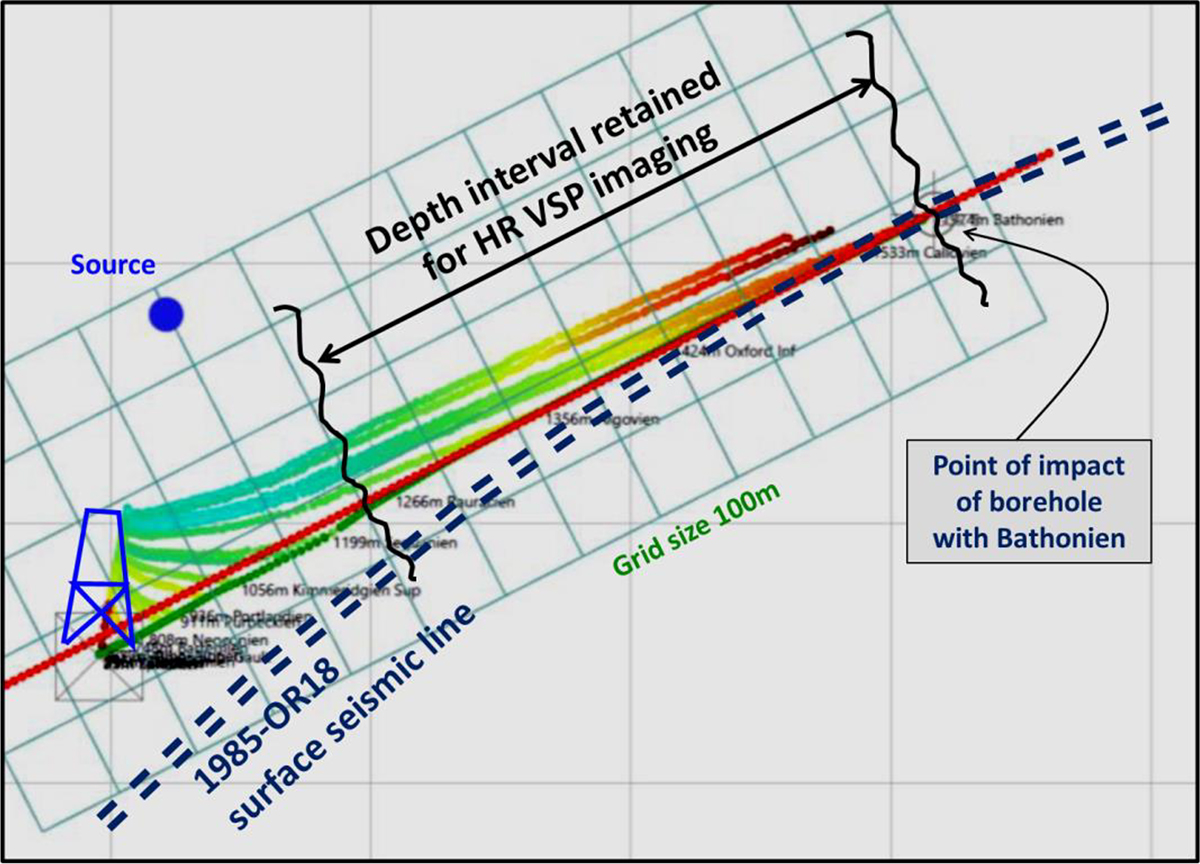

VSP PP-up reflection points (blue source, green receivers, image line red points close to well path, and dash line track of surface seismic line 85OR18. The incidence angle for the intra-Bathonien reflections extends from 15° (light green), 23° (yellow), up to 37° (dark red) near the NE point of impact. Figure modified from Figures 4.3.1 and 7.3.1 of Bailey [8].
