Figure 13


Download original image

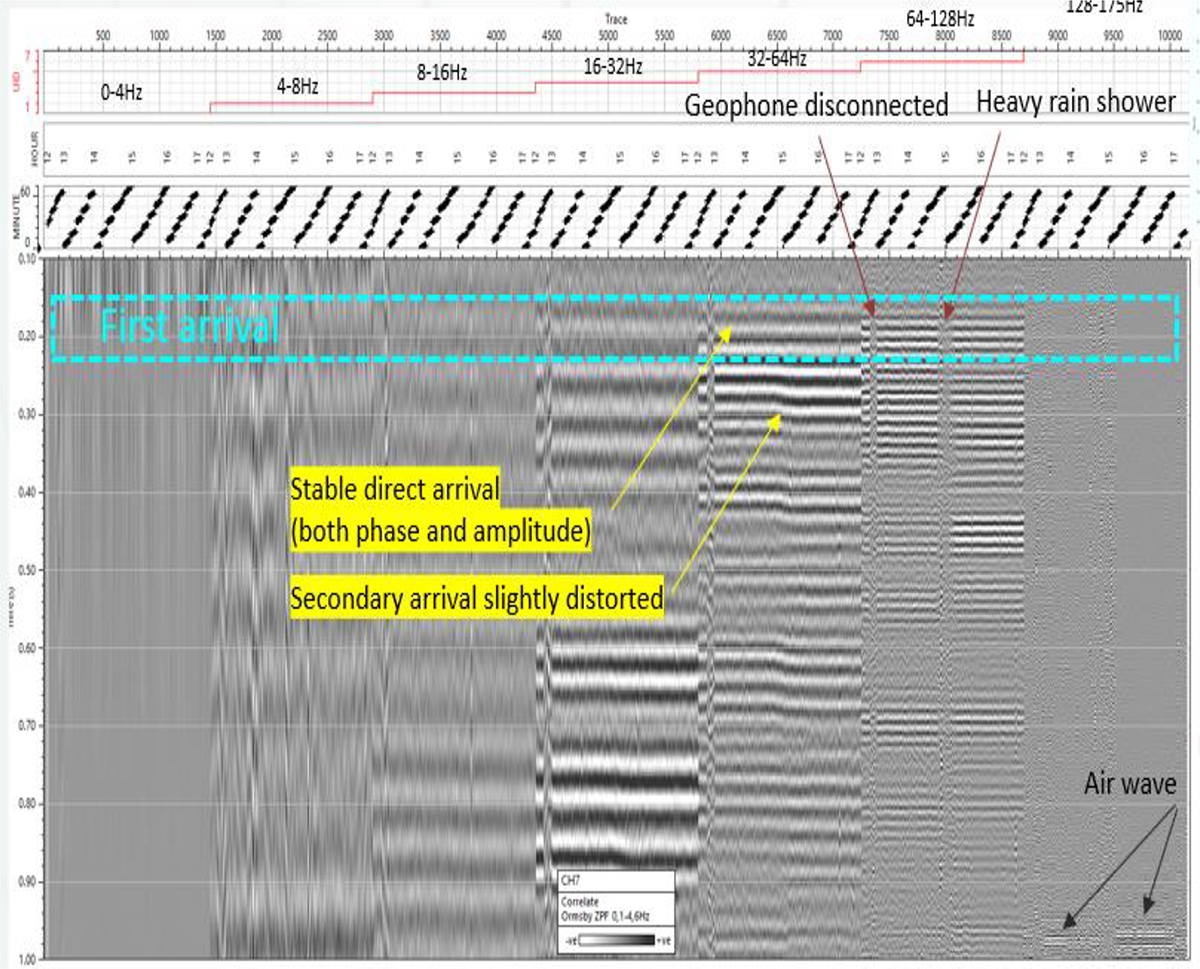

Surface geophone after correlation and Octave analysis up to 175 Hz. First arrival waveform coherency is shown, as well as surface condition changes due to heavy rain. Air wave appears as the dominant seismic event in the 128–175 Hz frequency band, as expected in surface seismic.
