Fig. 2


Download original image

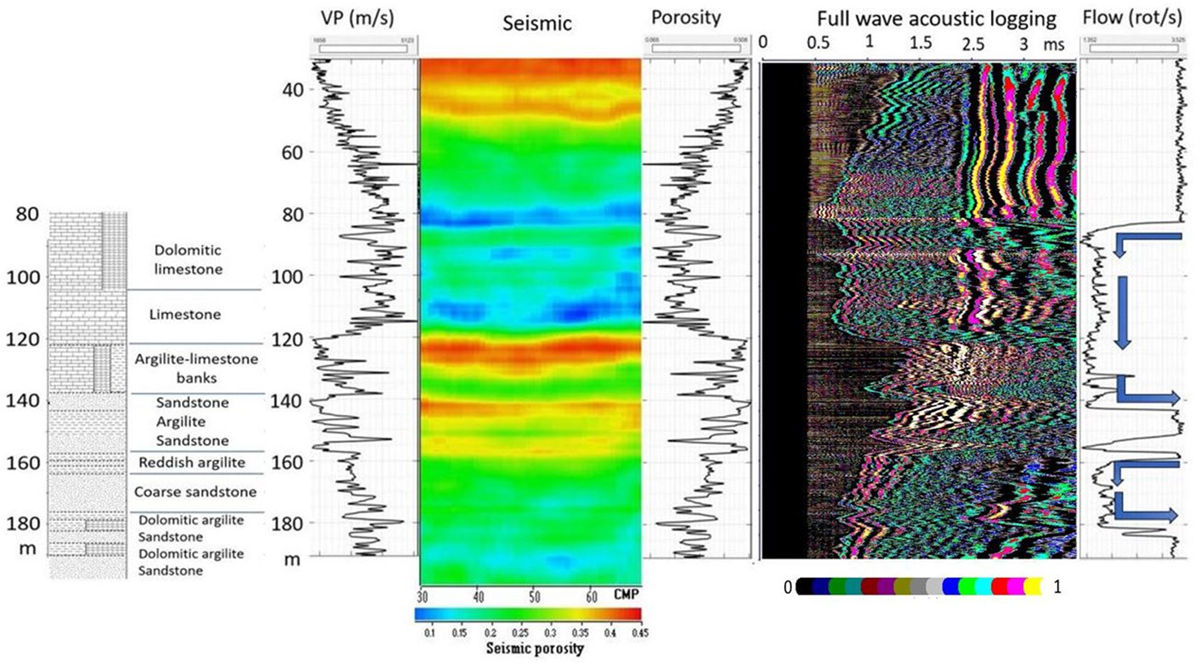

Seismic imaging and active acoustic logging: from left to right: lithological column, acoustic velocity, seismic section converted in porosity, acoustic porosity, Full wave acoustic composite section (0–80 m: borehole B1, 80–190 m: borehole B2 slotted PVC cased hole) and flowmeter. After [11].
